Fiberglass Products for Open Molding

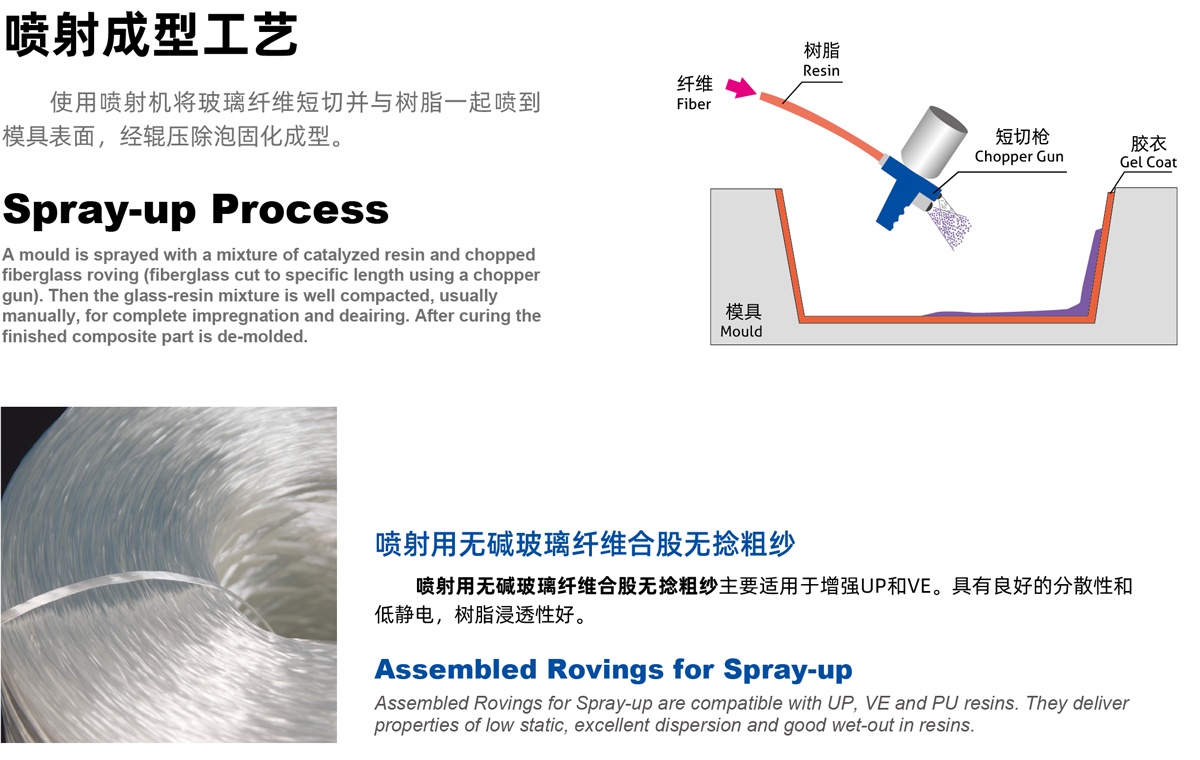

Spray-up Process

Hand Lay-up Process

1595573075533489

产品商标 Product Code	产品特点 Product Features	典型利用 Typical Application	手册下载 Data Download
176	喷射顺畅性好，，，喷射分散面较大，，，渗透速度较慢，，，垂直面不易滑落，，，适合出产大尺寸制件 Good runnability for spraying operation, larger dispersion area in spraying, slower wet-out, less slide on vertical surfaces, suitable for production of large parts	游泳池、储罐、船艇 Swimming pools, storage tanks, boats & yachts	176
180	喷射操作顺畅性好，，，渗透速度适中，，，易辊压，，，易排泡，，，小角度无回弹，，，制品力学机能和耐水机能优异，，，适合高速的机械手喷射工艺 Good runnability for spraying operation, moderate wet-out speed, easy roll-out, easy removal of bubbles，，，no spring back in sharp angles, excellent mechanical properties and hydrolytic resistance in parts, suitable for high-speed spray-up process with robots	卫浴、玻璃钢船体、汽车配件、化学贮罐 Sanitary ware, FRP hulls, auto parts, chemical storage tanks	180
180K	渗透速度快，，，出格适合小的制品 Fast wet-out,ideal for products with small surface	浴缸 Bathtubs	180K

1595573077478603 1595573078863242

产品认证 Certification	认证产品规格 Product Code	证书号 Certificate No
挪威船级社(DNV) DNV	EWR270	TAK00001TH
	EWR360
	EWR580
	EWR600
	EWR800
英国劳氏船级社(LR) LR	EWR270	LR2002408ALP
	EWR360	LR2002409ALP
	EWR580	LR2002410ALP
	EWR600	LR2002411ALP
	EWR800	LR2002412ALP

1595573080974276 1595573081407780

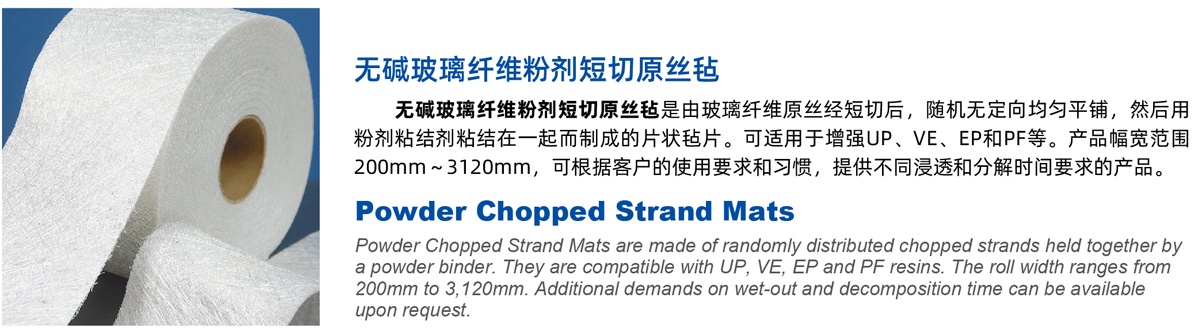

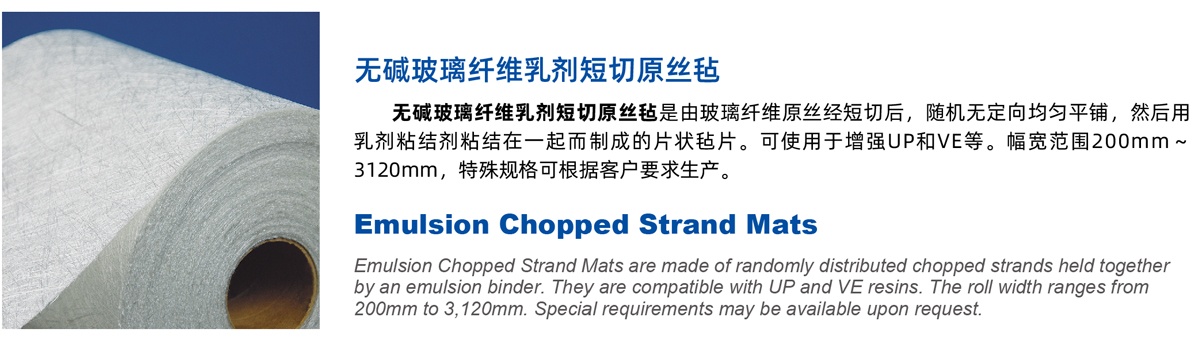

产品商标 Product Code	产品特点 Product Features	手册下载 Data Download
E01	拉伸强度高，，，合用于出产面积较大的产品，，，操作时无飞腾，，，树脂浸穿性好, 渗透速度快，，，气泡容易排除，，，制品机械强度高，，，拥有优异的耐酸侵蚀性 High tensile strength, allowing for use in hand lay-up process to produce large-area parts, no airborne fiber when operating, good wet-through and fast wet-out in resins, rapid air lease, high mechanical strength, superior acid corrosion resistance	E01
E10	辊压排泡性非：：：，，，树脂含量低 Rapid air lease reducing rolling out times, low resin consumption	E10
E20	覆模性好，，，树脂浸穿性好，，，渗透速度快，，，气泡容易排除，，，削减辊压次数, 树脂亏损少，，，制品机械强度高，，，优异的耐酸侵蚀性 Good moldability, good wet-through and fast wet-out in resins, rapid air lease reducing rolling out times and increasing productivity, low resin consumption, high mechanical strength of composite products, superior acid corrosion resistance	E20

1595573082771909

产品商标

Product Code

产品特点

Product Features

手册下载

Data Download

P02

拉伸强度高，，，合用于手糊工艺出产面积较大的制品,树脂浸穿性好,
渗透速度快，，，气泡气容易排除，，，制品机械强度高，，，优异的耐酸侵蚀机能
High tensile strength, suitable for use in hand lay-up process to produce large-area parts, good wet-through and
fast wet-out in resins, rapid air lease, high mechanical strength

P02

P20

毡质柔软，，，覆模性好，，，方便手工扯破，，，树脂浸穿性好，，，渗透速度快，，，气泡容易
排除，，，削减辊压次数，，，树脂亏损少，，，制品机械强度高，，，优异的耐酸侵蚀机能
Soft mat, ease of manual tearing apart, good conformability, good wet through and fast wet-out in resins, rapid
air release reducing rolling out times and increasing productivity, low resin consumption, high mechanical
strength of composite products, superior acid corrosion resistance

P20

产品认证 Certification	认证产品规格 Product Code	证书号 Certificate No
挪威船级社(DNV) DNV	EMC300	TAK000001TJ
	EMC450
	EMC600
	EMC900
英国劳氏船级社(LR) LR	EMC225(E)	MAST/3490/2
	EMC300(E)
	EMC450(E)
	EMC600(E)
	EMC300(P)	LR2002414LP
	EMC450(P)
	EMC600(P)
	EMC900(P)
